ASSO

LIDAR for Aerosol with Scanning System for 3D Observation

LIDAR technology for atmospheric monitoring and 3D observation

DEtails

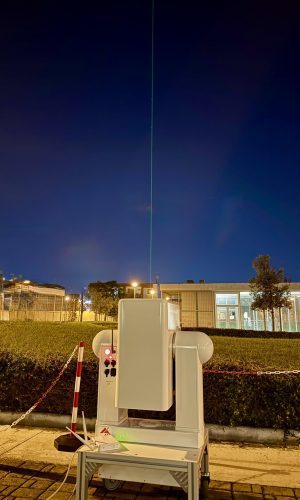

ASSO is an elastic-Raman LIDAR system specially designed to monitor the atmosphere in a very large range of altitude: from 150 meters to 30 kilometers, combining compactness,  accuracy, autonomy in remote use and ease of operation.

ASSO is a two wavelengths LIDAR with emission at 355nm and 532nm and can detect both the co-polarized and cross-polarized signals at 355nm and 532 nm and the Raman echoes at 386 nm, 407 nm and 607 nm, by simultaneously using analogic and photocounting detection.

ASSO is the perfect combination of high researcher performance, reliability, portability and friendless.

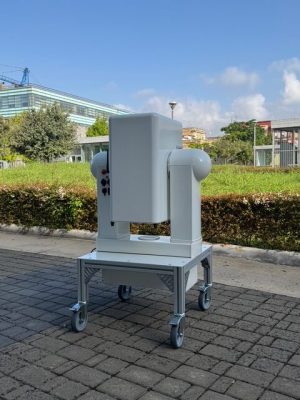

ASSO can be provided with a manual swiveling system or with an automatic scanning system, ensuring a two-axes rotation and the possibilty to retrive 3D aerosol profiles of the atmosphere.



SMART
ASSO

Automatism for

  • – Telecover test
  • – Rayleigh fit
  • – Polarization calibration
  • – Zero bin
  • – Dark measurements

Real time monitoring of:



  • – Atmospheric aerosol optical and microphysical properties
  • – Planetary Boundary Layer evolution
  • – Clouds dynamic
  • – Atmopheric pollution

What comparison tests say

ASSO has been compared several times with a competing commercial system working at the same wavelength (but not easily transportable), always giving better results in terms of detected signals and signal-to-noise ratio.

ASSO's power supply unit is quite small and high-weight, and does not hinder the system's transportability unlike many competitor products.

features

•  Output wavelength: 355 nm, 532 nm
•  Detected channels: E355P, E355S, R386, R407 E532P, E532S, R607
•  Aerosol measurements up to 30 km
• Full overlap at 150 m with very short blind zone (~30 m)
•  PBL and cloud detection
•  Manual swiveling system (0°  to 90°) or automatic scanning system (0° to 360°) and (0° to 90°)
• Real time visualization
•  High stability and autonomy in remote use
•  Portability and ease of operation
•  Size: 290x400x500 mm (power supply included)
•  Weight: 40 kg (power supply included)

(ele,
